HJ-RAR56-06, HJ-RAR56-07 are equipped with anti-glare lenses, the light is not glare.
HJ-RAR56-06 uses high-quality EPISTAR LED chips, the beam angle is available in 120°.
HJ-RAR56-07 uses high-quality COB EPISTAR LED chips, the beam angle is available in 120°.

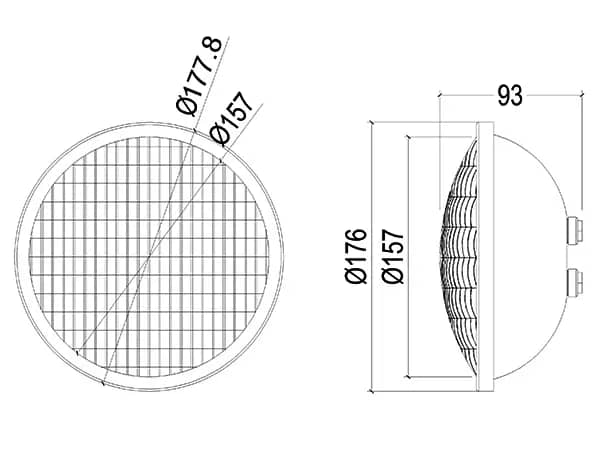

HJ-RAR56-06, HJ-RAR56-07 detailed size.

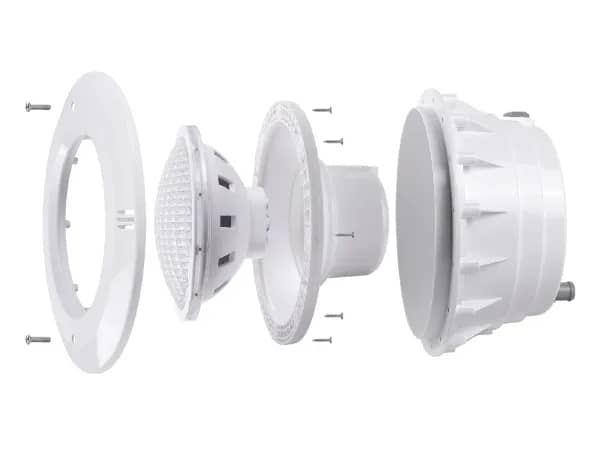

Installation diagram
| Model | HJ-PAR56S-06 | |||
|---|---|---|---|---|
| LED Chips Brand | EPISTAR | |||
| Beam Angle | 120° | |||
White(WW/NW/PW) |
√ | |||
| Power | 18W | 25W | 35W | |
| Voltage | 12V,24V(AC,DC) |
12V,24V(AC,DC) |
12V,24V(AC,DC) |
|
| RGB | √ | √ | √ | |
| RGBW | √ | x | x | |
| Body Material | SS304/316 | |||
| Cover Material | Anti-glare PC | |||
| Dimensions | Ф177.8 x 93 mm | |||
| Waterproof Way | Structural waterproofing | |||
| Waterproof Level | IP68 | |||
| MOQ | 1 | |||
| Warranty Period | 2 years | |||
| Model | HJ-PAR56-07 | |||
|---|---|---|---|---|
| LED Chips Brand | COB EPISTAR | |||
| Beam Angle | 120° | |||
White(WW/NW/PW) |
√ | |||
| Power | 20W | 30W | ||
| Voltage | 12V,24V(AC,DC) |
12V,24V(AC,DC) |
||
| RGB | x | x | ||
| RGBW | x | x | ||
| Body Material | SS304/316 | |||
| Cover Material | Anti-glare PC | |||
| Dimensions | Ф177.8 x 93 mm | |||
| Waterproof Way | Structural waterproofing | |||
| Waterproof Level | IP68 | |||
| MOQ | 1 | |||
| Warranty Period | 2 years | |||
