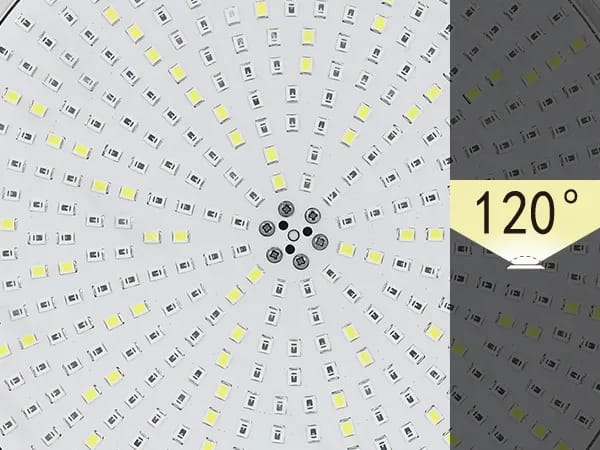

Uses high-quality EPISTAR LED chips, the beam angle is available in 120°.

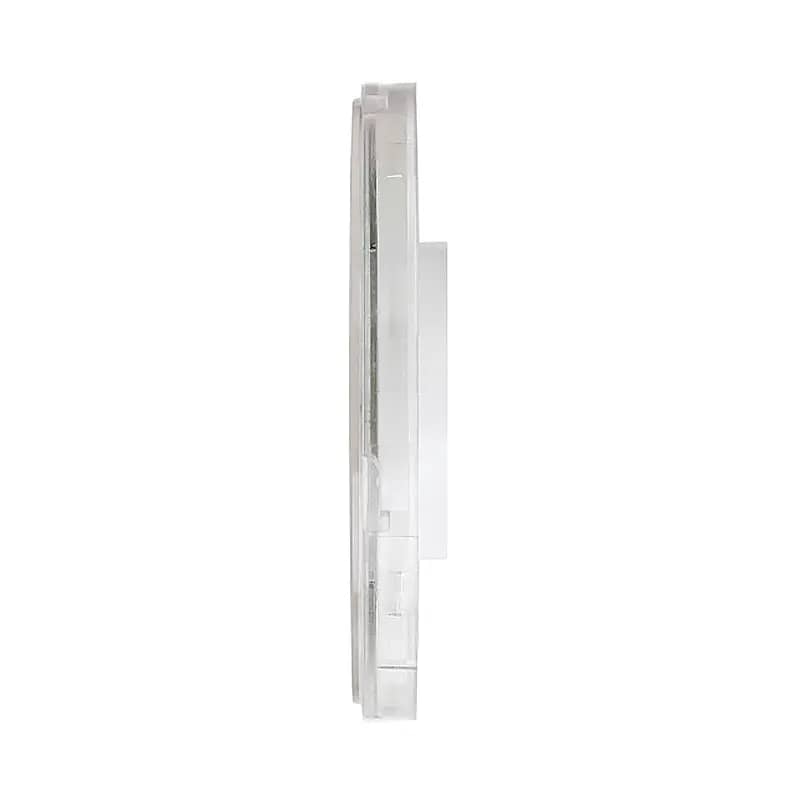

HJ-PAR56-01 detailed size.

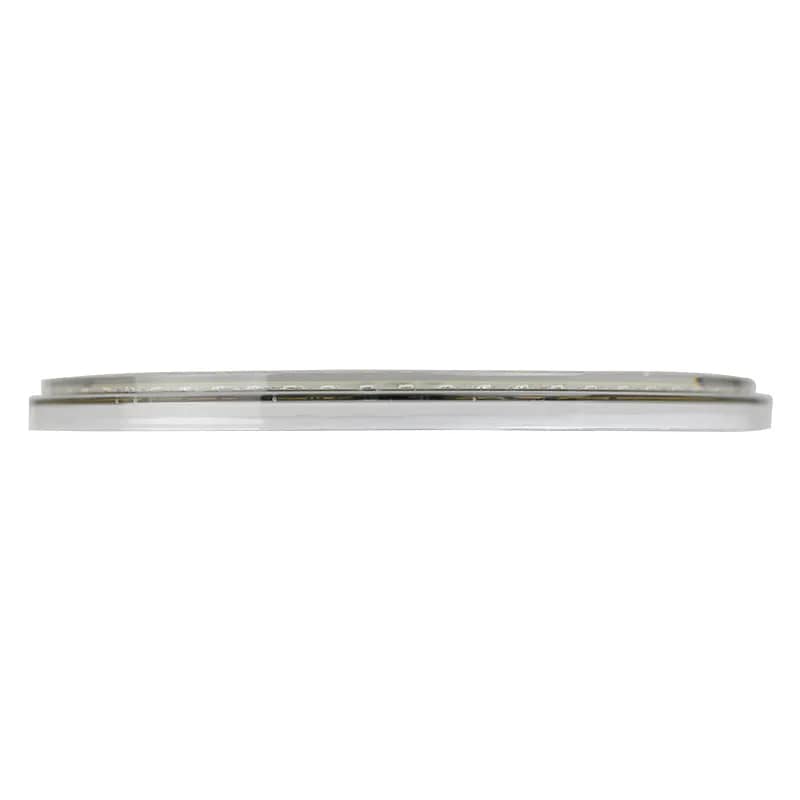

HJ-PAR56-02 detailed size.

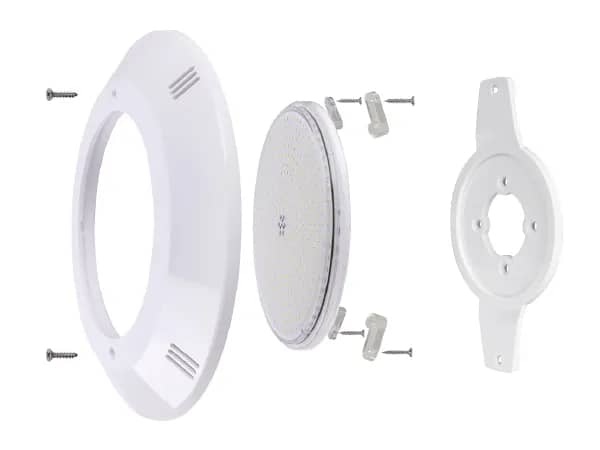

Installation diagram one
Installation diagram two
| Model | HJ-PAR56-1 | |||
|---|---|---|---|---|
| LED Chips Brand | EPISTAR | |||
| Beam Angle | 120° | |||
White(WW/NW/PW) | √ | |||
| Power | 18W | 25W | 35W | |
| Voltage | 12V,24V(AC,DC) | 12V,24V(AC,DC) | 12V,24V(AC,DC) | |
| RGB | √ | √ | √ | |
| RGBW | √ | √ | √ | |
| Body Material | ABS+UV | |||
| Cover Material | PC | |||
| Dimensions | Ф177.8mm | |||
| Waterproof Way | Resin filled | |||
| Waterproof Level | IP68 | |||
| MOQ | 1 | |||
| Warranty Period | 2 years | |||
| Model | HJ-PAR56-2 | |||
|---|---|---|---|---|
| LED Chips Brand | EPISTAR | |||
| Beam Angle | 120° | |||
White(WW/NW/PW) | √ | |||
| Power | 18W | 25W | 35W | |
| Voltage | 12V,24V(AC,DC) | 12V,24V(AC,DC) | 12V,24V(AC,DC) | |
| RGB | √ | √ | √ | |
| RGBW | √ | √ | √ | |
| Body Material | ABS+UV | |||
| Cover Material | PC | |||
| Dimensions | Ф177.8mm | |||
| Waterproof Way | Resin filled | |||
| Waterproof Level | IP68 | |||
| MOQ | 1 | |||
| Warranty Period | 2 years | |||
