DMX512 Controller

1. With the LCD screen show, it is easy to operate in showing all functions on LCD.

2. Built-in perpetual calendar, real-time display of the system clock; it can be set to play different programs at any time, from Monday to Sunday, and holidays.

3. Internal 580 lighting modes, such as 7 static color, synchro-nous jump , synchronous gradual change, color flow, color chasing, color gradual change and flow, and meteor shower trailing, etc.

4. Multilevel changing speed, brightness, RGB gray scale adjustment and effect of movement direction for your choices.

5. Feel free to define several changing modes into a step and 8 independent cycle steps at maximum.

6. International standard DMX512/1990 signal output to control 512 DMX channels (170 full color RGB pixels)

7. Support different output ports like standard XLR-3, RJ45 and green terminals, etc.

8. Good anti-interference function and automatic breakdown recovery function.

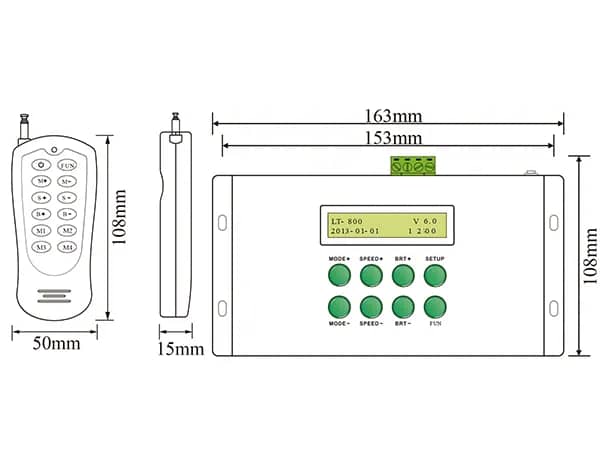

DMX 512 controller size

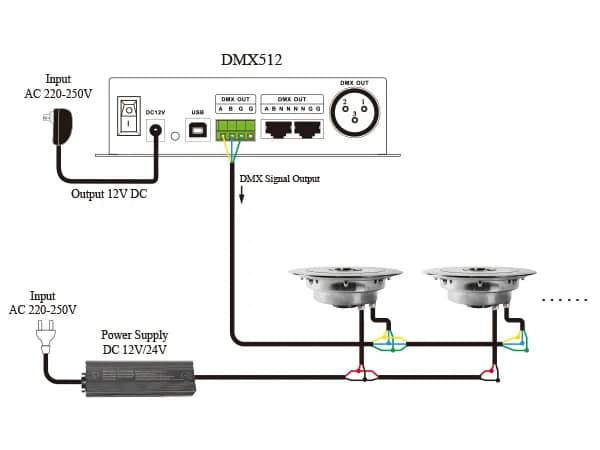

DMX 512 controller groups wiring installation diagram one

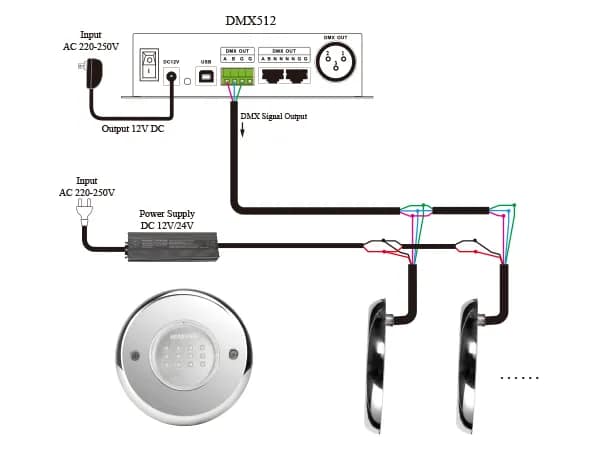

DMX 512 controller groups wiring installation diagram two
