Dimming Controller

Operating Voltage: AC 100-240V
Model: HJ-0-10V


HJ-0-10V single color dimmer supports dimming curve selection function. Dimming depth can achieve 0.1-100% dimming limit. LED dimming starts from 0.1%, to meet the diverse requirements for light intensity. The dimming process is smooth and flicker-free, making it more comfortable for the eyes. It uses advanced digital circuit design, built-in high-performance MCU, supports deep flicker-free dimming, and is compatible with different brands of external control systems on the market. It complies with safe extra-low voltage labeling with protection for short-circuit, over-temperature, overload, and over-voltage.

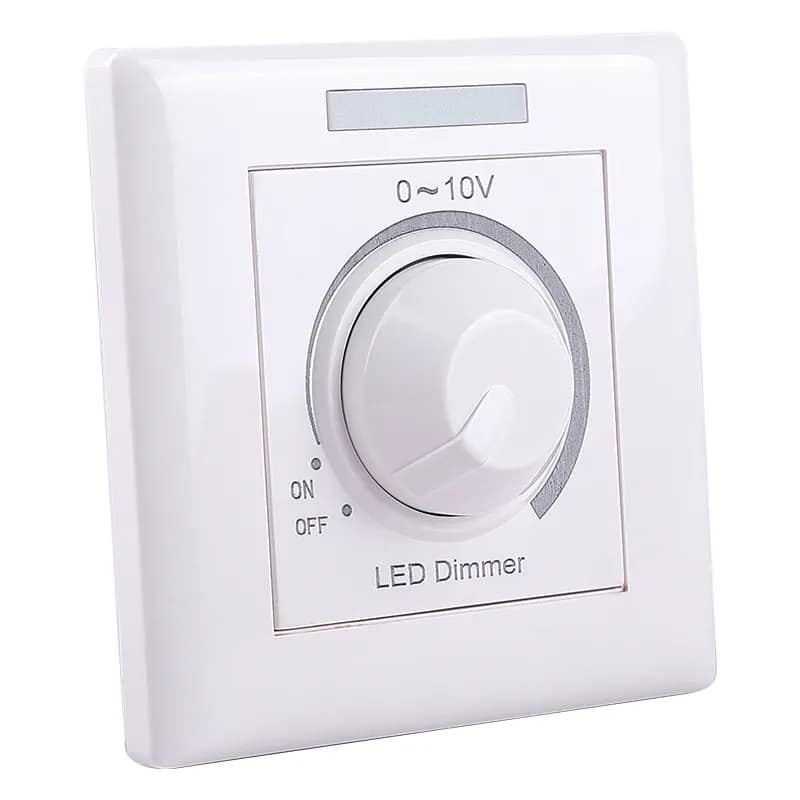

dimming controller dimmer panel

Dimmer Panel Detailed Parameters

Input Voltage: AC 100~240V, 50-60Hz

Output Voltage: DC 0-10V

Working Temperature: -10 degrees to 50 degrees

Output Power: 0-10v, no more than 15ma

Dimmer Panel Dimensions: 87*87*34mm

dimming controller power supply

Power Supply Parameters

Input Voltage: AC 100-240V

Output Voltage: DC 12V/24V

Frequency Range: 50/60Hz

Input Current: No more than 0.75A

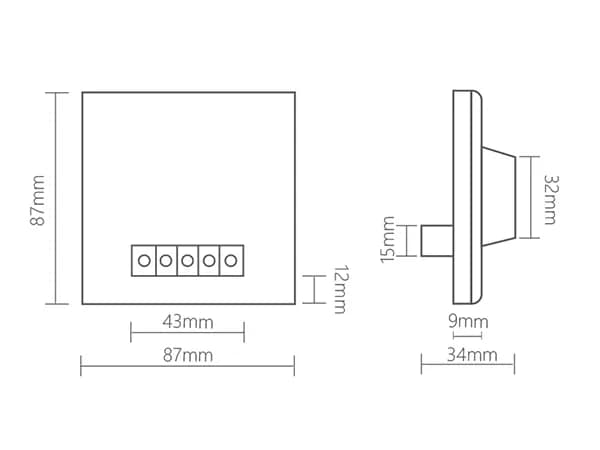

dimming controller panel size

Dimming controller panel size

dimming controller drive power size

Dimming controller drive power size

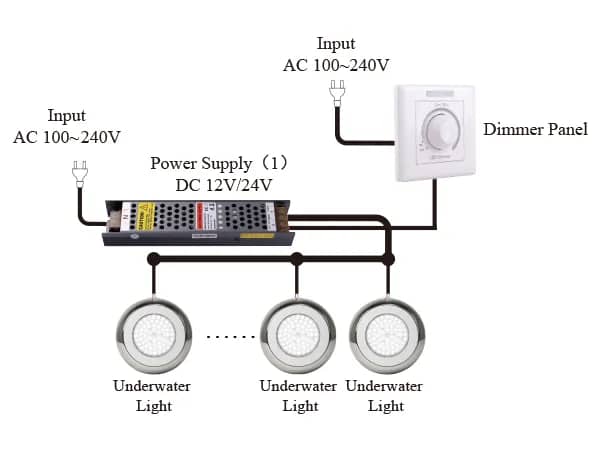

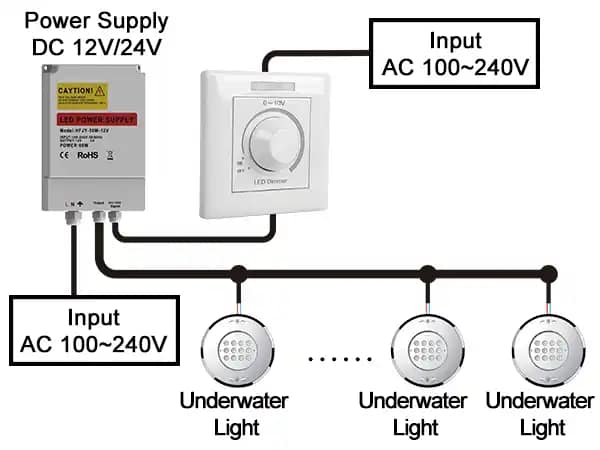

dimming controller and underwater lights wiring diagram

Dimming controller and underwater lights wiring diagram
