| Model | HJ-WM-SS230 | |||
|---|---|---|---|---|
| Applicable Scene | Concrete pool | |||
| Body Material | SS304+ABS/316L+ABS | |||
| Lens Material | Anti-glare PC | |||
| Dimensions | Ф230 x 54 mm | |||
| Face Ring Options | White, Light gray, Blue | |||
| Beam Angle | 120° | |||
| Power | 7W | 12W | 18W | |
| Voltage | 12, 24V (AC, DC) | 12, 24V (AC, DC) | 12, 24V (AC, DC) | |
| Lumen (6000K) | 735 | 1092 | 1928 | |
| Lumen (RGB) | 343 | 540 | 846 | |
| Lumen (RGBW) | none | none | none | |
| LED Chips Number | 72 | 108 | 252 | |
| LED Chips Brand | EPISTAR | |||
| Certifications | IP68, CE, ROHS, SGS, ISO | |||
| MOQ | 1 | |||
| Warranty Period | 2 years | |||
| Model | HJ-WM-SS230L | |||
|---|---|---|---|---|
| Applicable Scene | Concrete pool | |||
| Body Material | SS304+ABS/316L+ABS | |||
| Lens Material | Anti-glare PC | |||
| Dimensions | Ф168 x 54 mm | |||
| Face Ring Options | White, Light gray, Blue | |||
| Beam Angle | 45° | |||
| Power | 9W | 12W | 18W | |
| Voltage | 12V, 24V (AC, DC) | 12V, 24V (AC, DC) | 12V, 24V (AC, DC) | |
| Lumen (6000K) | 783 | 1020 | 1494 | |
| Lumen (RGB) | 459 | 588 | 792 | |
| Lumen (RGBW) | 588 | none | none | |
| LED Chips Number | 9 | 12 | 12 | |
| LED Chips Brand | CREE/OSRAM | |||
| Certifications | IP68, CE, ROHS, SGS, ISO | |||
| MOQ | 1 | |||
| Warranty Period | 2 years | |||
| Model | HJ-WM-SS300 | |||
|---|---|---|---|---|
| Applicable Scene | Concrete pool | |||
| Body Material | SS304+ABS/316L+ABS | |||
| Lens Material | Anti-glare PC | |||

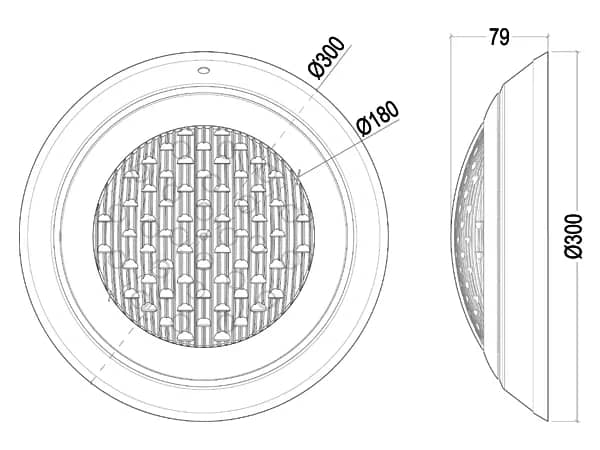

| Dimensions | Ф300 x 79 mm | |||
| Face Ring Options | White, Light gray, Blue | |||
| Beam Angle | 120° | |||
| Power | 12W | 18W | 25W | 35W |
| Voltage | 12, 24V (AC, DC) | 12, 24V (AC, DC) | 12, 24V (AC, DC) | 12, 24V (AC, DC) |
| Lumen (6000K) | 1068 | 1972 | 2725 | 3710 |
| Lumen (RGB) | 528 | 918 | 1250 | 1715 |
| Lumen (RGBW) | 612 | none | none | none |
| LED Chips Number | 108 | 261 | 351 | 441 |
| LED Chips Brand | EPISTAR | |||
| Certifications | IP68, CE, ROHS, SGS, ISO | |||
| MOQ | 1 | |||
| Warranty Period | 2 years | |||
| Model | HJ-WM-SS300L | |||
|---|---|---|---|---|
| Applicable Scene | Concrete pool | |||
| Body Material | SS304+ABS/316L+ABS | |||
| Lens Material | Anti-glare PC | |||
| Dimensions | Ф300 x 79 mm | |||
| Face Ring Options | White, Light gray, Blue | |||
| Beam Angle | 45° | |||
| Power | 12W | 18W | 25W | 35W |
| Voltage | 12V, 24V (AC, DC) | 12V, 24V (AC, DC) | 12V, 24V (AC, DC) | 12V, 24V (AC, DC) |
| Lumen (6000K) | 1008 | 1494 | 1975 | 2730 |
| Lumen (RGB) | 588 | 810 | 1125 | 1505 |
| Lumen (RGBW) | none | none | none | none |
| LED Chips Number | 12 | 18 | 24 | 24 |
| LED Chips Brand | CREE/OSRAM | |||
| Certifications | IP68, CE, ROHS, SGS, ISO | |||
| MOQ | 1 | |||
| Warranty Period | 2 years | |||
