290mm Plastic Wall Mounted Pool Light

Power Options: 18W/25W/35W
Body Material: ABS+UV
Lens Material: PC
Dimensions: Ф290 x 30 mm
Waterproof Way: Resin filled
Waterproof Level: IP68
  • Share to:

Model

HJ-WM-PC290 Installation Combination
HJ-WM-PC290
Applies to: Concrete pool
HJ-WM-PC290V Installation Combination
HJ-WM-PC290V
Applies to: Vinyl Liner Pool
HJ-WM-PC290FG Installation Combination
HJ-WM-PC290FG
Applies to: Fiberglass Pool
HJ-WM-PC290FGV Installation Combination
HJ-WM-PC290FGV
Applies to: Fiberglass Pool, Vinyl Liner Pool

Features

pool light beam angle

HJ-WM-PC290, HJ-WM-PC290V, HJ-WM-PC290FG, HJ-WM-PC290FGV uses high-quality EPISTAR LED chips, the beam angle is available in 120°.

pool light size

HJ-WM-PC290, HJ-WM-PC290V, HJ-WM-PC290FG, HJ-WM-PC290FGV detailed size.

Specifications

Model HJ-WM-PC290
Applicable Scene Concrete pool
LED Chips Brand EPISTAR
Beam Angle 120°
Controllers HJ-0040, HJ-0040W, HJ-0050, HJ-0050W, HJ-0010, HJ-0-10V, DMX512
White(WW/NW/PW)
Power 18W 25W 35W
Voltage
12V,24V(AC,DC)
12V,24V(AC,DC)
12V,24V(AC,DC)
RGB
RGBW
Body Material ABS+UV
Lens Material PC
Dimensions Ф290 x 30 mm
Waterproof Way Resin filled
Waterproof Level IP68
Model HJ-WM-PC290V
Applicable Scene Vinyl Liner Pool
LED Chips Brand EPISTAR
Beam Angle 120°
Controllers HJ-0040, HJ-0040W, HJ-0050, HJ-0050W, HJ-0010, HJ-0-10V, DMX512
White(WW/NW/PW)
Power 18W 25W 35W
Voltage
12V,24V(AC,DC)
12V,24V(AC,DC)
12V,24V(AC,DC)
RGB
RGBW
Body Material ABS+UV
Lens Material PC
Dimensions Ф290 x 30 mm
Waterproof Way Resin filled
Waterproof Level IP68
Model HJ-WM-PC290FG
Applicable Scene Fiberglass Pool
LED Chips Brand EPISTAR
Beam Angle 120°
Controllers HJ-0040, HJ-0040W, HJ-0050, HJ-0050W, HJ-0010, HJ-0-10V, DMX512
White(WW/NW/PW)
Power 18W 25W 35W
Voltage
12V,24V(AC,DC)
12V,24V(AC,DC)
12V,24V(AC,DC)
RGB
RGBW
Body Material ABS+UV
Lens Material PC
Dimensions Ф290 x 30 mm
Waterproof Way Resin filled
Waterproof Level IP68
Model HJ-WM-PC290FGV
Applicable Scene Fiberglass Pool, Vinyl Liner Pool
LED Chips Brand EPISTAR
Beam Angle 120°
Controllers HJ-0040, HJ-0040W, HJ-0050, HJ-0050W, HJ-0010, HJ-0-10V, DMX512
White(WW/NW/PW)
Power 18W 25W 35W
Voltage
12V,24V(AC,DC)
12V,24V(AC,DC)
12V,24V(AC,DC)
RGB
RGBW
Body Material ABS+UV
Lens Material PC
Dimensions Ф290 x 30 mm
Waterproof Way Resin filled
Waterproof Level IP68

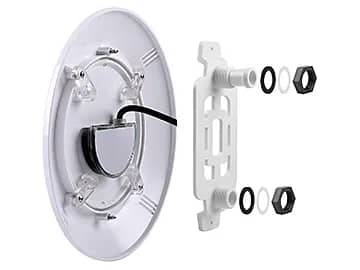

Installation Method

Surface mounted light in concrete pool one

Surface mounted light in concrete pool one

Surface mounted light in concrete pool two

Surface mounted light in concrete pool two

Wall-mounted light in vinyl liner pool

Wall-mounted light in vinyl liner pool

Wall-mounted light in vinyl liner & fiberglass pool

Wall-mounted light in vinyl liner & fiberglass pool

Wall-mounted light in fiberglass pool

Wall-mounted light in fiberglass pool
