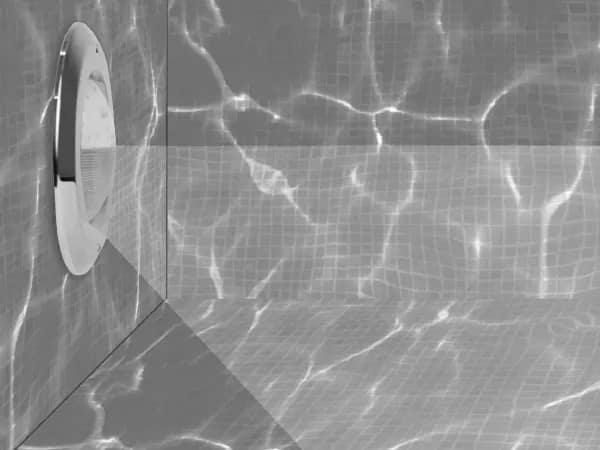

The lens of HJ-RC-SS286/HJ-RV-SS286 is divided into two layers, with a layered refraction function. The light is refracted when passing through the upper lens, parallel to the water surface; the light is evenly dispersed when passing through the lower lens. After installing this light, the light of the pool light is concentrated on the irradiated water body, which has excellent lighting and decorative effect and does not stimulate the eyes.
Uses high-quality CREE/OSRAM LED chips, the beam angle is available in 120°. With anti-glare lens, the light is not glare.
Light body size
Plastic niche hole dimensions for vinyl liner pool
stainless steel niche hole dimensions for vinyl liner pool
| Model | HJ-RC-SS286 | |||
|---|---|---|---|---|
| Applicable Scene | Concrete pool | |||
| LED Chips Brand | CREE/OSRAM | |||
| Beam Angle | 120° | |||
White(WW/NW/PW) | √ | |||
| Power | 25W | 35W | 50W | 80W |
| Voltage | 12V,24V(AC,DC) | 12V,24V(AC,DC) | 12V,24V(AC,DC) | 12V,24V(AC,DC) |
| RGB | √ | √ | x | x |
| RGBW | √ | x | x | x |
| Body Material | SS316 | |||
| Cover Material | Anti-glare tempered glass | |||
| Dimensions | Ф286 x H65 mm | |||
| Waterproof Way | Structural waterproofing | |||
| Waterproof Level | IP68 | |||
| MOQ | 1 | |||
| Warranty Period | 2 years | |||
| Model | HJ-RV-SS286 | |||
|---|---|---|---|---|
| Applicable Scene | Vinyl Liner Pool | |||
| LED Chips Brand | CREE/OSRAM | |||
| Beam Angle | 120° | |||
White(WW/NW/PW) | √ | |||
| Power | 25W | 35W | 50W | 80W |
| Voltage | 12V,24V(AC,DC) | 12V,24V(AC,DC) | 12V,24V(AC,DC) | 12V,24V(AC,DC) |
| RGB | √ | √ | x | x |
| RGBW | √ | x | x | x |
| Body Material | SS316 | |||
| Cover Material | Anti-glare tempered glass | |||
| Dimensions | Ф286 x H65 mm | |||
| Waterproof Way | Structural waterproofing | |||
| Waterproof Level | IP68 | |||
| MOQ | 1 | |||
| Warranty Period | 2 years | |||
