230mm Stainless Steel Wall Mounted Pool Light

Power Options: 7W/9W/12W/18W
Body Material: SS304/316
Lens Material: Anti-glare PC
Dimensions: Ф230 x 40 mm
Waterproof Way: Structural waterproofing
Waterproof Level: IP68
  • Share to:

Model

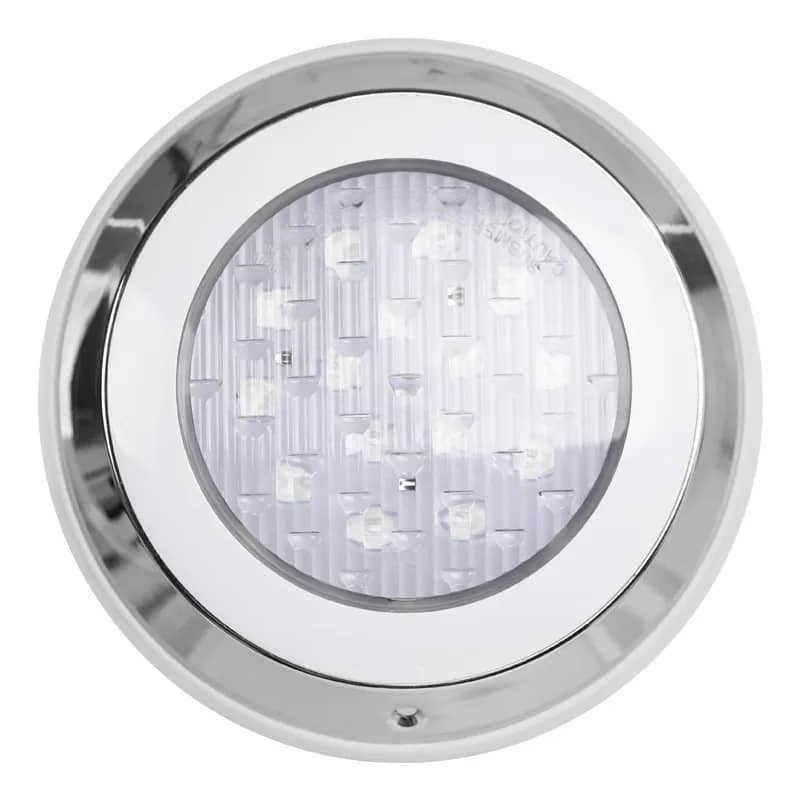

HJ-WM-SS230H Installation Combination
HJ-WM-SS230H
Applies to: Concrete pool

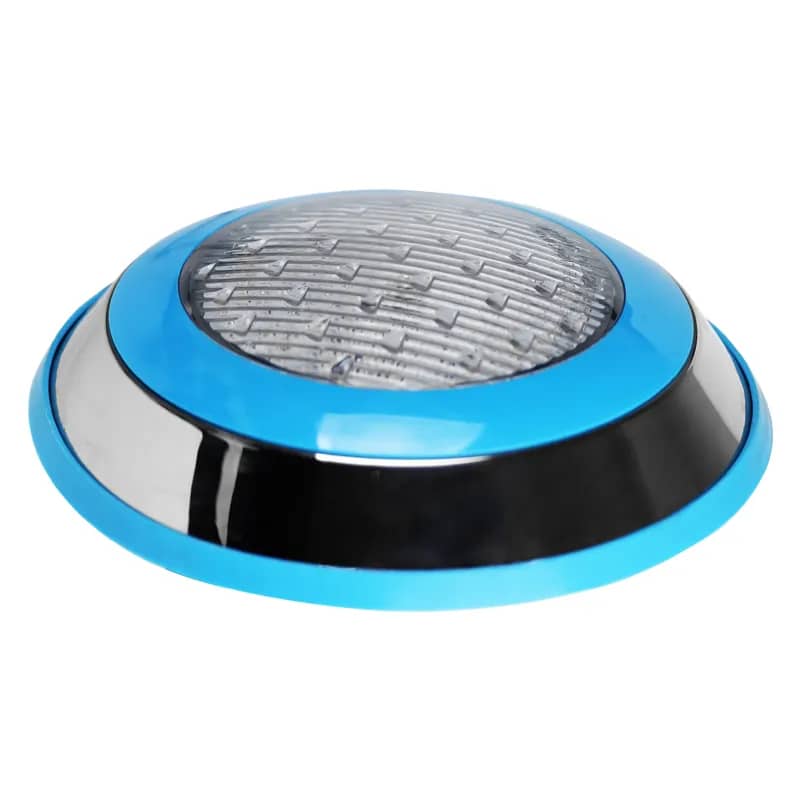

HJ-WM-SS230S Installation Combination
HJ-WM-SS230S
Applies to: Concrete pool

Features

pool light beam angle

HJ-WM-SS230H uses high-quality CREE/OSRAM LED chips and refractive lenses, the beam angle is available in 45°.

HJ-WM-SS230S uses high-quality EPISTAR LED chips, the beam angle is available in 120°.

pool light size

HJ-WM-SS230H, HJ-WM-SS230S detailed size.

Specifications

Model HJ-WM-SS230H
Applicable Scene Concrete pool
LED Chips Brand CREE/OSRAM
Beam Angle 45°
Controllers HJ-0040, HJ-0040W, HJ-0050, HJ-0050W, HJ-0010, HJ-0-10V, DMX512
White(WW/NW/PW)
Power 9W 12W 18W
Voltage
12V,24V(AC,DC)
12V,24V(AC,DC)
12V,24V(AC,DC)
RGB
RGBW x x
Body Material SS304/316
Lens Material Anti-glare PC
Dimensions Ф230 x 40 mm
Waterproof Way Structural waterproofing
Waterproof Level IP68
Model HJ-WM-SS230S
Applicable Scene Concrete pool
LED Chips Brand EPISTAR
Beam Angle 120°
Controllers HJ-0040, HJ-0040W, HJ-0050, HJ-0050W, HJ-0010, HJ-0-10V, DMX512
White(WW/NW/PW)
Power 7W 12W 18W
Voltage
12V,24V(AC,DC)
12V,24V(AC,DC)
12V,24V(AC,DC)
RGB
RGBW x x
Body Material SS304/316
Lens Material Anti-glare PC
Dimensions Ф230 x 40 mm
Waterproof Way Structural waterproofing
Waterproof Level IP68

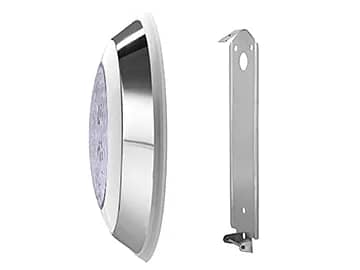

Installation Method

Surface mounted light in concrete pool one

Surface mounted light in concrete pool one

Surface mounted light in concrete pool two

Surface mounted light in concrete pool two

Wall-mounted light in vinyl liner pool

Wall-mounted light in vinyl liner pool

Wall-mounted light in vinyl liner & fiberglass pool

Wall-mounted light in vinyl liner & fiberglass pool

Wall-mounted light in fiberglass pool

Wall-mounted light in fiberglass pool
