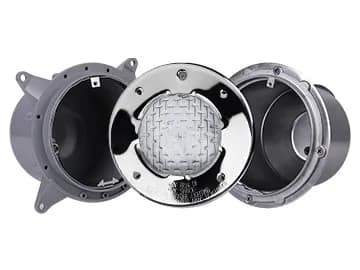

Alternative to Pentair IntelliBrite Stainless Steel LED Pool Light

Power Options: 9W/12W/18W/25W/35W/50W

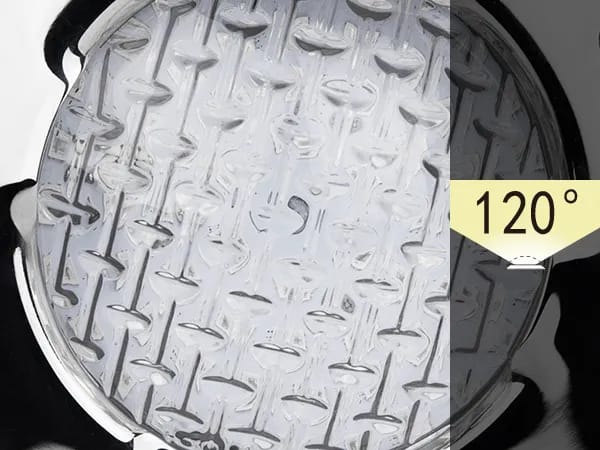

Beam Angle: 120°
Certifications: IP68, CE, ROHS, SGS, ISO
Waterproof Level: IP68
MOQ: 1
Warranty Period: 2 years

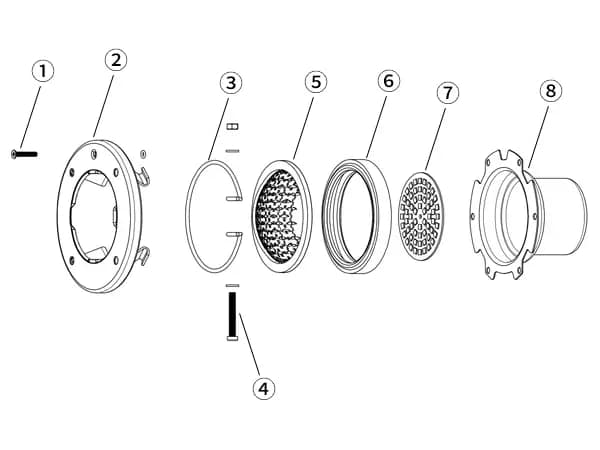

Model: HJ-RC-SS146

Product Structure Diagram
  1. Pilot screw
  2. Stainless steel mask
  3. Fixed wire hoop assembly
  4. Fixed wire hoop stainless steel screws
  5. Tempered glass lens
  6. Sealing Gasket, Ф4 inch Silicone
  7. PCB Circuit Board
  8. Stainless steel body shell

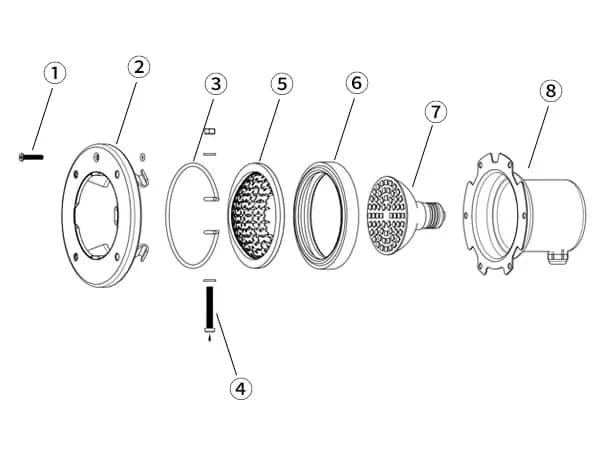

Model: HJ-RC-SS146E

Product Structure Diagram
  1. Pilot screw
  2. Stainless steel mask
  3. Fixed wire hoop assembly
  4. Fixed wire hoop stainless steel screws
  5. Tempered glass lens
  6. Sealing Gasket, Ф4 inch Silicone
  7. E27-80 bulb
  8. Stainless steel body shell

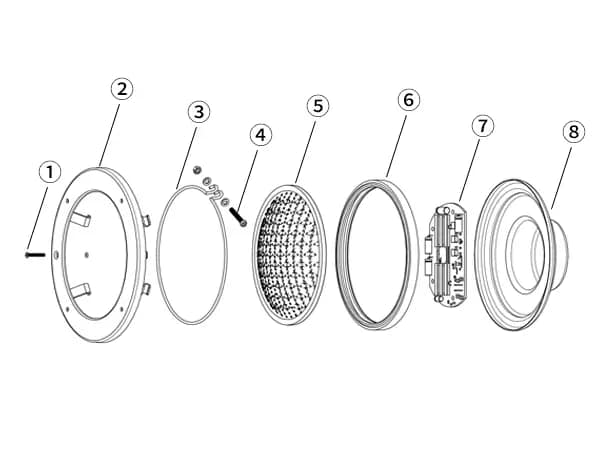

Model: HJ-RC-SS258

Product Structure Diagram
  1. Pilot screw
  2. Stainless steel mask
  3. Fixed wire hoop assembly
  4. Fixed wire hoop stainless steel screws
  5. Tempered glass lens
  6. Sealing Gasket, Ф8-3/8 inch Silicone
  7. PCB Circuit Board
  8. Stainless steel body shell

Model: HJ-RC-SS146-1

For Concrete Pool
For Concrete Pool

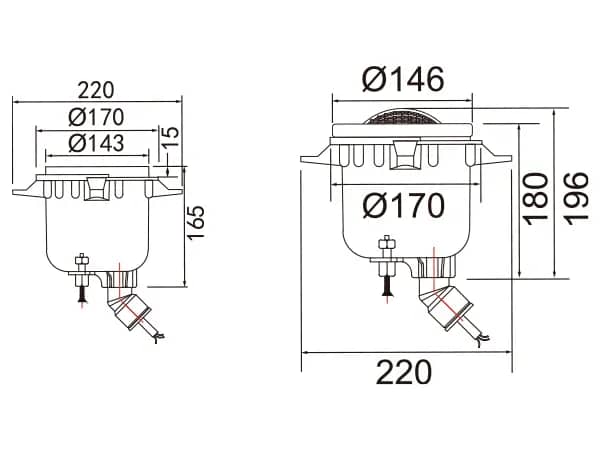

Size & Mounting ->

Model: HJ-RC-SS258-1

For Concrete Pool
For Concrete Pool
Size & Mounting ->

Specifications

ModelHJ-RC-SS146
Applicable Scene Concrete pool
Body Material SS304/316L
Lens Material Anti-glare tempered glass
DimensionsФ146 x 108 mm
Beam Angle120°
Power12W18W
Voltage
12V, 24V (AC, DC)
12V, 24V (AC, DC)
Lumen (6000-6500K)9721458
Lumen (RGB)624918
Lumen (RGBW)708none
LED Chips Number912
LED Chips Brand CREE/OSRAM
CertificationsIP68, CE, ROHS, SGS, ISO
MOQ1
Warranty Period2 years
ModelHJ-RC-SS146E
Applicable Scene Concrete pool
Body Material SS304/316L
Lens Material Anti-glare tempered glass
DimensionsФ146 x 123 mm
Beam Angle120°
Power9W
Voltage
12V, 24V (AC, DC)
Lumen (6000-6500K)675
Lumen (RGB)378
Lumen (RGBW)none
LED Chips Number60
LED Chips Brand EPISTAR
CertificationsIP68, CE, ROHS, SGS, ISO
MOQ1
Warranty Period2 years
ModelHJ-RC-SS258
Applicable Scene Concrete pool
Body Material SS304/316L
Lens Material Anti-glare tempered glass
DimensionsФ258 x 87 mm
Beam Angle120°
Power18W35W50W
Voltage
12V, 24V (AC, DC)
12V, 24V (AC, DC)
12V, 24V (AC, DC)
Lumen (6000-6500K)140428703600
Lumen (RGB)8821890none
Lumen (RGBW)10262065none
LED Chips Number122430
LED Chips Brand CREE/OSRAM
CertificationsIP68, CE, ROHS, SGS, ISO
MOQ1
Warranty Period2 years
ModelHJ-RC-SS146-1
Applicable Scene Concrete pool
Body Material SS304/316L
Lens Material PC
DimensionsФ146 x 27 mm
Beam Angle120°
Power12W
Voltage
12V, 24V (AC, DC)
Lumen (6000-6500K)1056
Lumen (RGB)540
Lumen (RGBW)none
LED Chips Number60
LED Chips Brand EPISTAR
CertificationsIP68, CE, ROHS, SGS, ISO
MOQ1
Warranty Period2 years
ModelHJ-RC-SS258-1
Applicable Scene Concrete pool
Body Material SS304/316L
Lens Material PC
DimensionsФ258 x 29 mm
Beam Angle120°
Power18W25W35W
Voltage
12V, 24V (AC, DC)
12V, 24V (AC, DC)
12V, 24V (AC, DC)
Lumen (6000-6500K)190825753500
Lumen (RGB)93612501610
Lumen (RGBW)1008nonenone
LED Chips Number261351441
LED Chips Brand EPISTAR
CertificationsIP68, CE, ROHS, SGS, ISO
MOQ1
Warranty Period2 years

Features

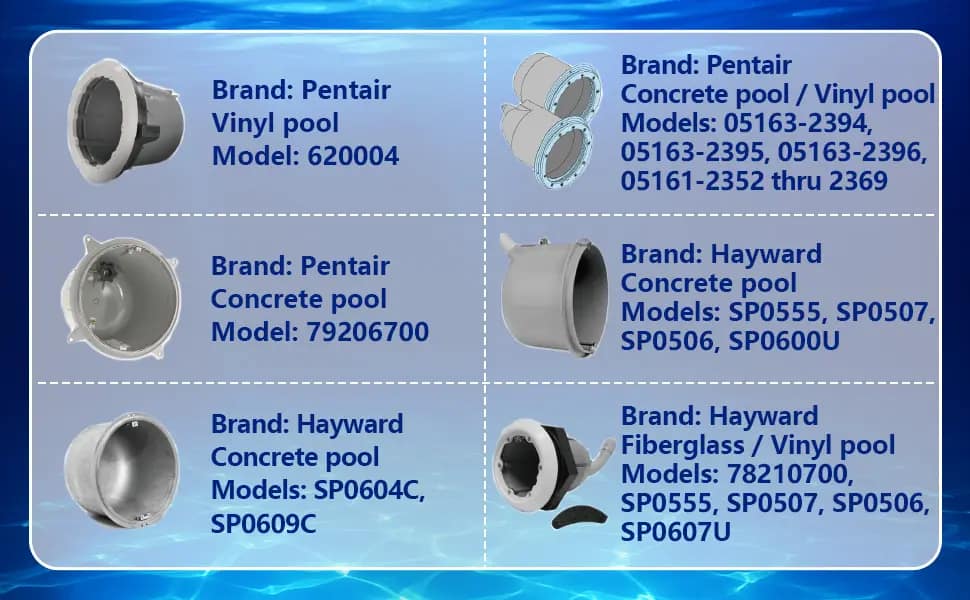

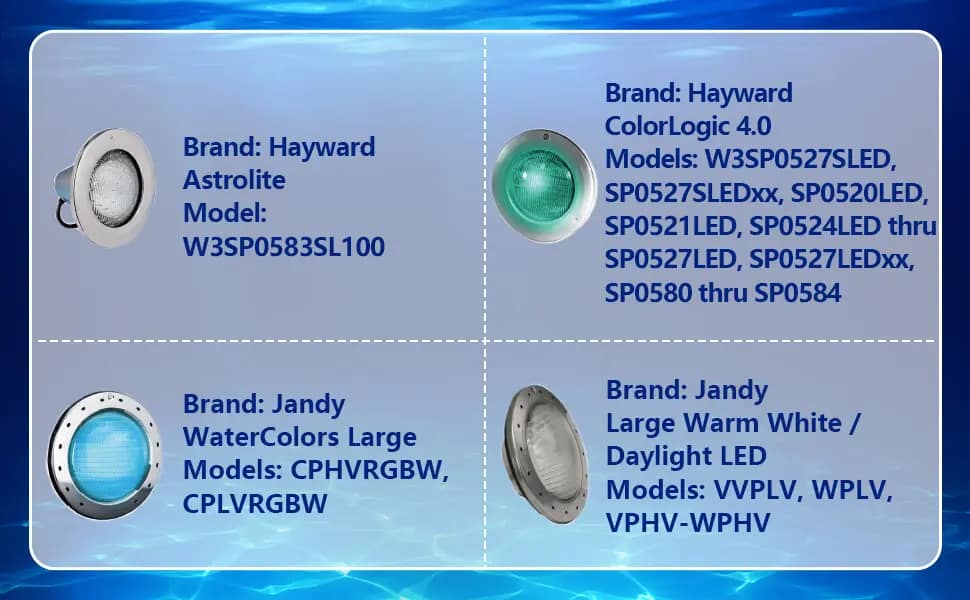

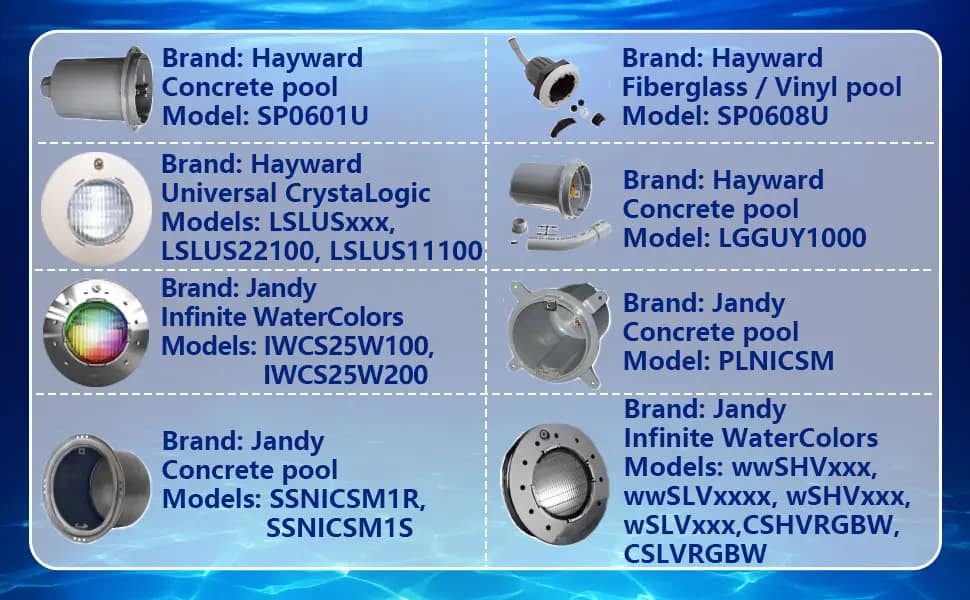

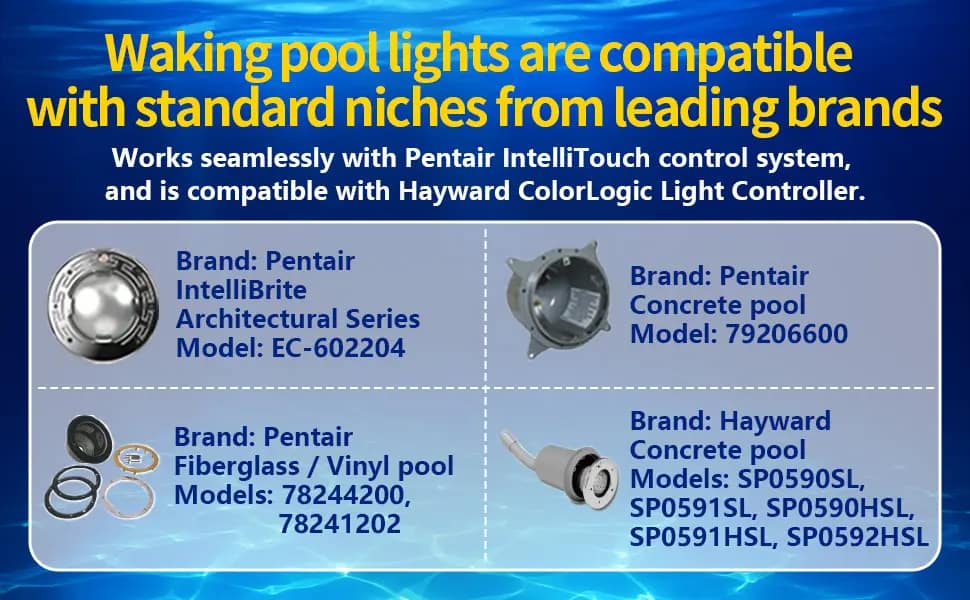

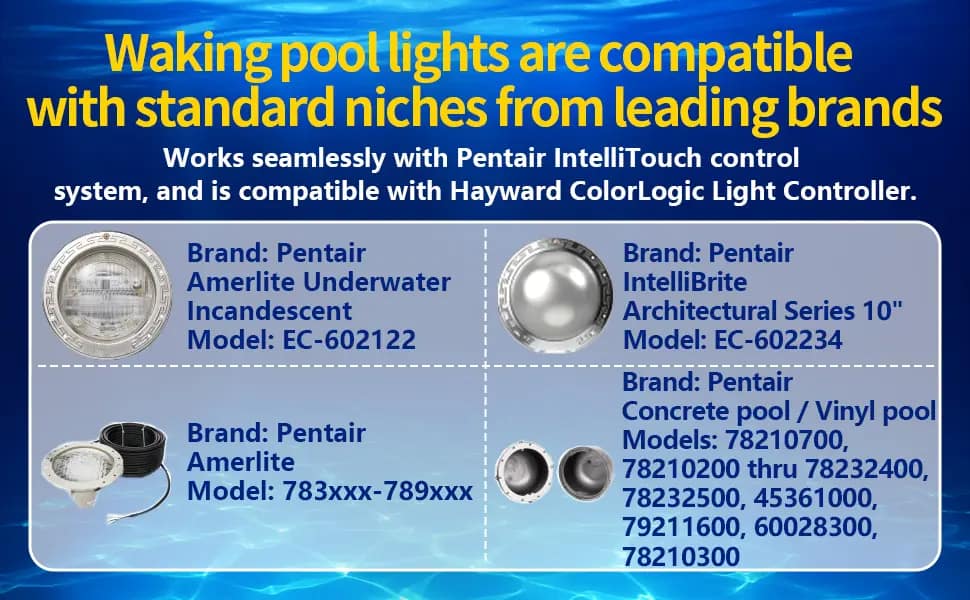

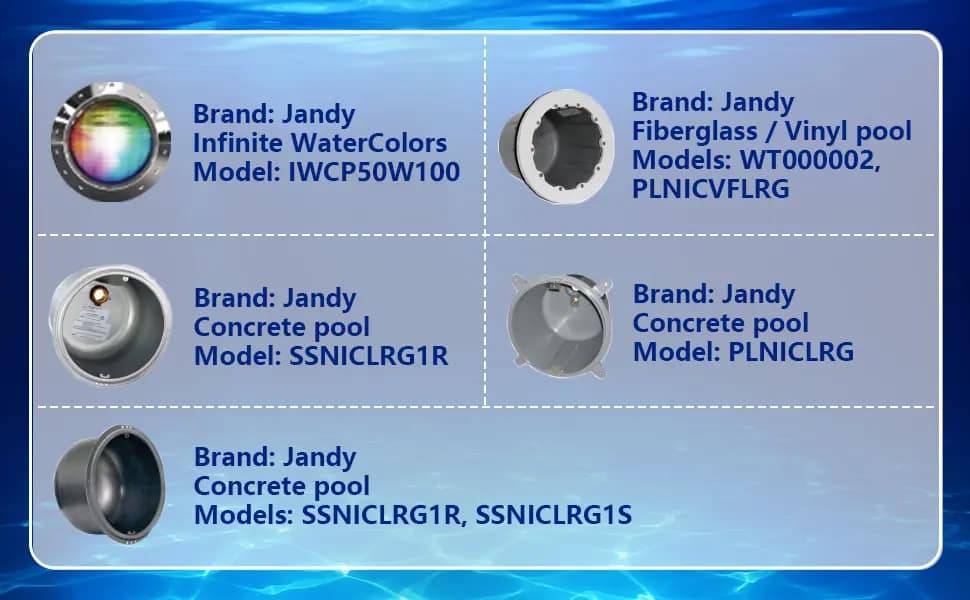

These pool lights are replacements for PENTAIR IntelliBrite and fits the following standard niches in the IntelliBrite Items :

ItemIlluminant colorItemIlluminant color
640150White640130RGB
640151White640131RGB
640152White640132RGB
640153White640133RGB
ItemIlluminant colorItemIlluminant color
601105White601010RGB
601106White601011RGB
601107White601012RGB
601108White601013RGB

In the video, we show the installation of this pool light. This pool light is perfectly compatible with IntelliBrite’s original kit.
