Low Voltage Switch Synchronization Controller

Operating Voltage: AC 12V
Receiver Size: 183*152*91mm, 152*188*63mm
Model: HJ-0020/HJ-0021

Features

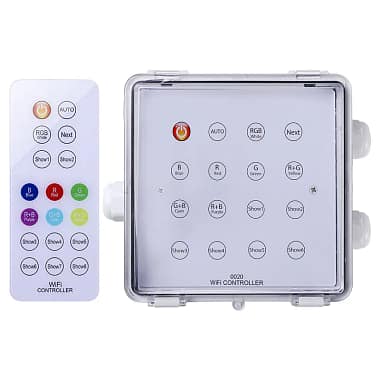

HJ-0020

HJ-0020

With a waterproof rating of IP67, HJ-0020 is a WiFi & Bluetooth synchronous control box, which is compatible with lighting fixtures that is controlled by switch modes of other brands. It is equipped with a special hanging plate for easy installation. Users can switch between 7 static light colors and 9 light changing modes at will. It is equipped with a 13-key full touch screen remote control handle to achieve wireless remote control. Remote intelligent control can be achieved by connecting to WiFi with the mobile device App developed by our company. In the absence of network, short-range intelligent control can be achieved through Bluetooth. You can download the App through App Store or scan the QR code.

Working Voltage: AC 12V

Rated Power: 200W

Control Way: Screen touch remote & mobile App

Operation Platform: Support WiFi & Bluetooth connection in Android, iOS and Harmony systems, 2.4GHz Wireless transmission

Remote Emission Frequency: 868MHz with built-in antenna; wireless remote control distance of 30m in open areas

Receiver Size: 152*188*63mm

Receiver Material: PC with tempered glass touchscreen panel Mode switching at will with 7 static colors and 6 color shows. Remote control via mobile App

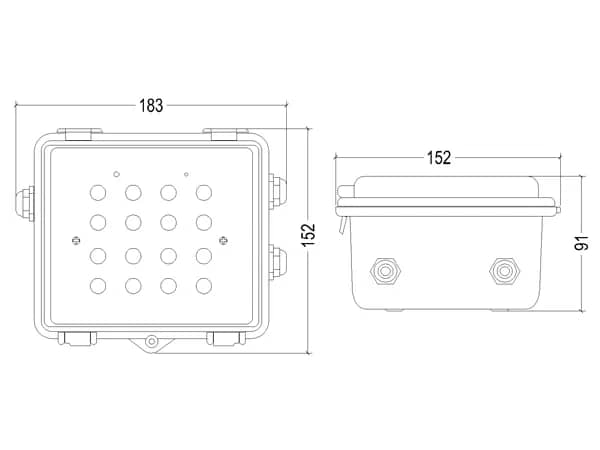

HJ-0020 console size

HJ-0020 console size

HJ-0020 installation illustration

HJ-0020 installation illustration

HJ-0021

HJ-0021

HJ-0021 is an RGB synchronous control device with a maximum load power of 300W. It has ultra-thin body and high-quality PC engineering plastic shell with light size and elegant appearance. With simple and clear design, you can choose the desired light color and mode with one button, and switch between 7 static light colors and 6 color shows. Users can also use 18-button remote control handle to achieve wireless remote control of 30m in open areas.

Working Voltage: AC 12V

Rated Power: 300W

Control Way: Remote handle

Remote Emission Frequency: 315MHz

Receiver Size: 183*152*91mm

PC Receiver Material: High quality PC

Receiver Material: PC with tempered glass touchscreen panel. Mode switching at will with 7 static colors and 6 color shows. Built-in antenna, 30m wireless remote control range in open areas

HJ-0021 remote control size

HJ-0021 remote control size

HJ-0021 control size

HJ-0021 console size

HJ-0021 installation illustration

HJ-0021 installation illustration

What Can You Experience at WAKING?

  • Support OEM and ODM
  • No MOQ restrictions
  • No middlemen involved
  • Recommend suitable products for your needs
  • Various lights to meet the lighting needs of pool, water feature and spa
